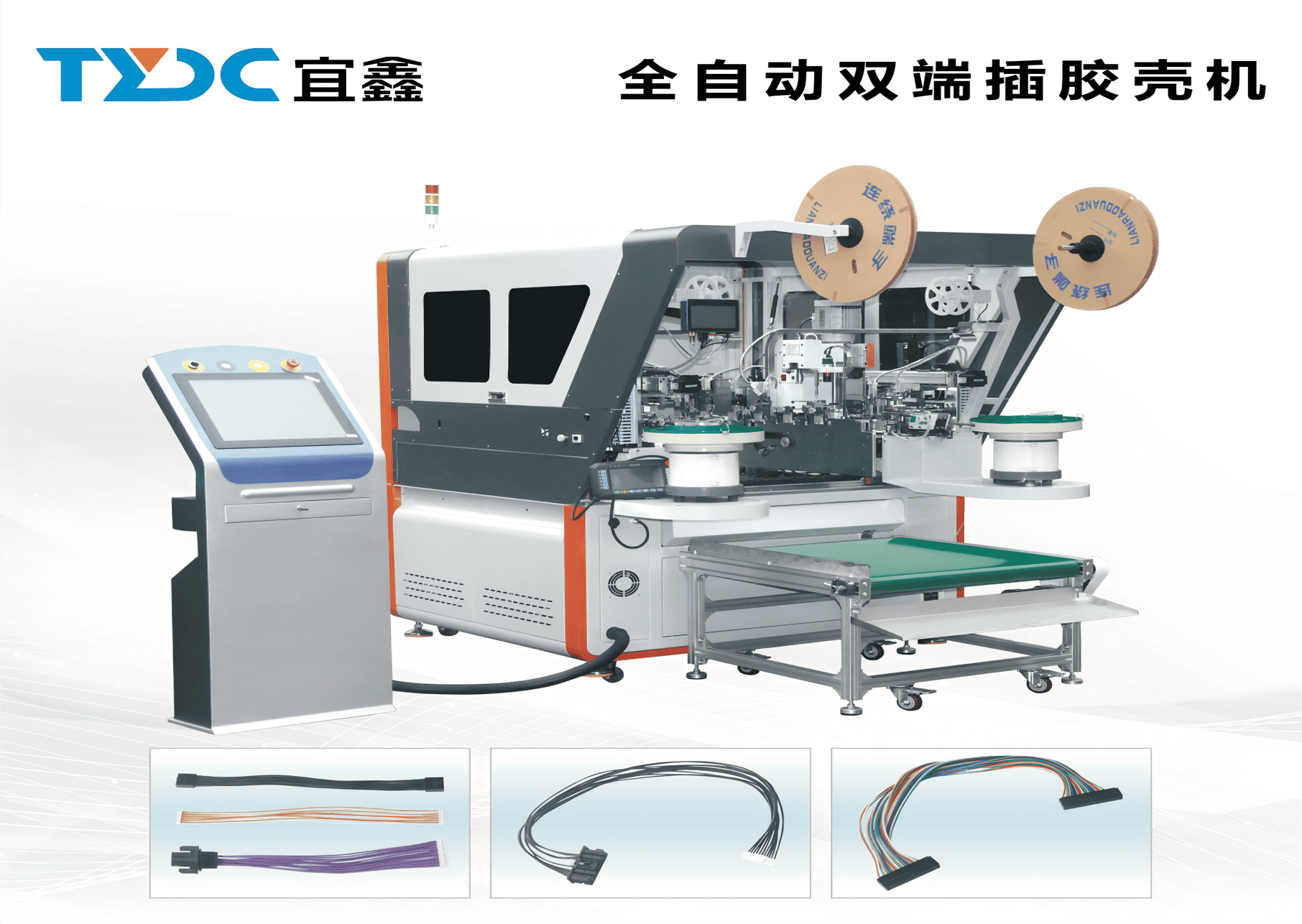

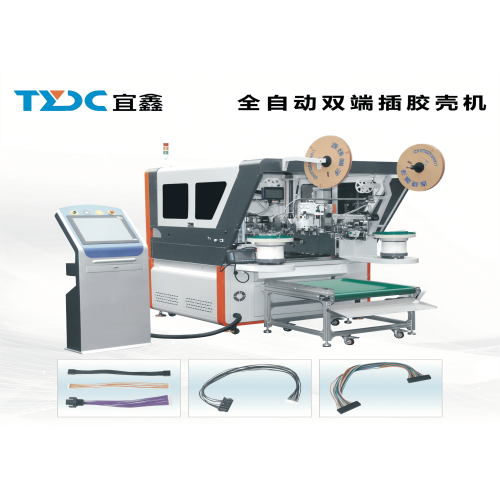

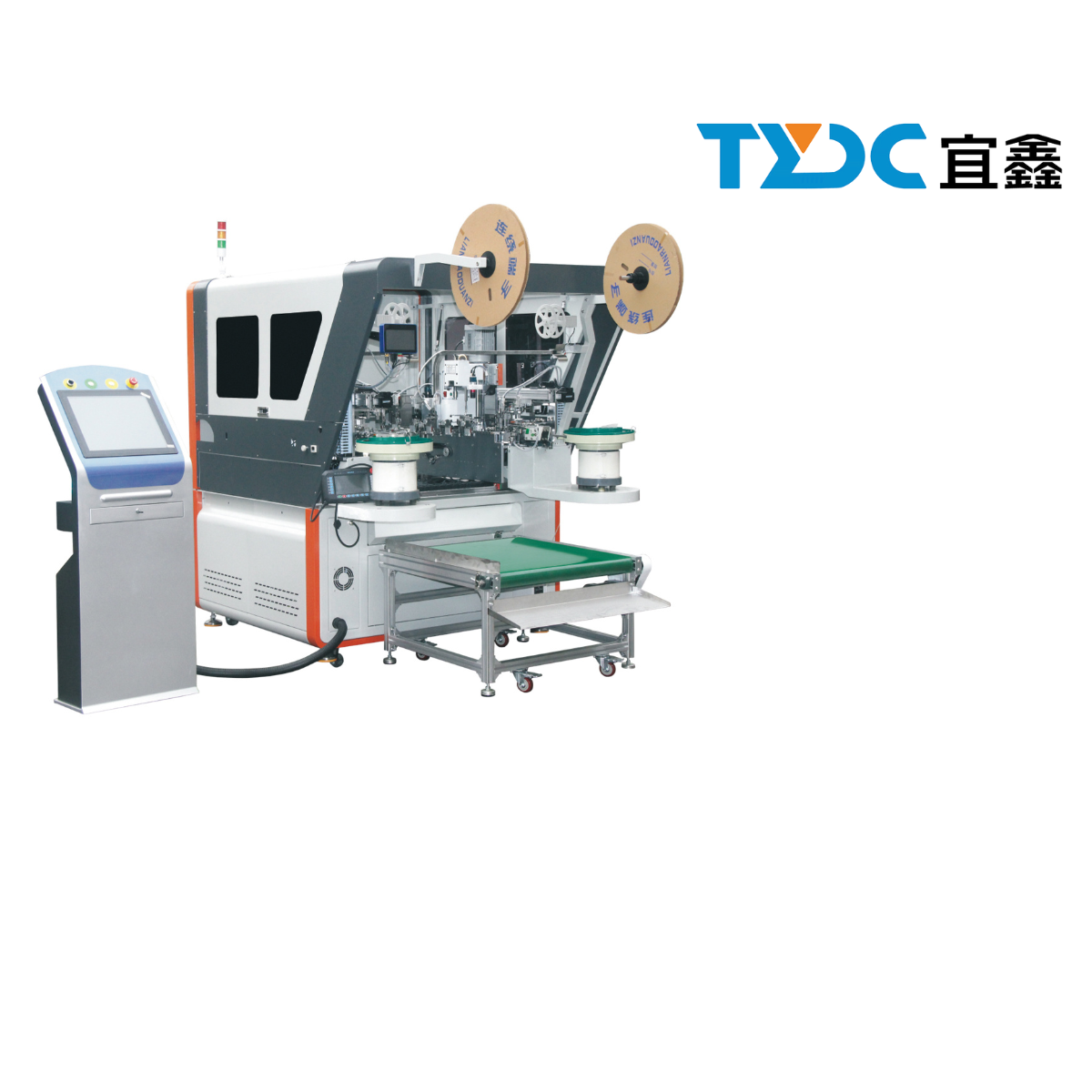

آلة إدخال القشرة ذات الرأس المزدوج الأوتوماتيكية بالكامل.
$50000-65000 /Set/Sets
| الدفع نوع: | L/C,T/T |
| إنكوترم: | FOB,CIF,EXW |
| أدني كمية الطلب: | 1 Set/Sets |
| نقل: | Ocean,Land,Air |
| ميناء: | Shenzhen Port,Guangzhou Port,Hong Kong Port |
Option:
- Power Supply: AC 220V
- High Power: 4.8 KW
- Compressed Air: 0.4–0.6 MPa
- Air Consumption: 30 L/min
- Machine Weight: ~1200 KG
- Dimensions (L×W×H): 2100 × 1600 × 1900 mm
- Function: A-end: peel, strip, crimp, insert B-end: peel, strip, crimp, insert
- Wire Processing Range: AWG16–AWG30
- Wire Processing Length: 80–900 mm (customizable)
- Cutting Accuracy: 0.5 mm + 0.2% of cutting length
- Peel Length: MAX 6 mm per end
- Compression Ability: 2 T
- Maximum PIN Insertion: 20 holes per row, up to 3 rows
- Maximum Color Count: 8 colors (more on request)
- Shell Size: MAX 40 × 25 × 20 mm, MIN 5 × 6 × 3 mm, spacing 1.0–4.2 mm
- Maximum Operating Speed: 1.5 seconds per unit
- Detection Device: Wire presence/absence, wire cutting, terminal presence/absence, abnormal stripping, terminal pressure monitoring, terminal pull detection
- Standard Components: 8-axis scroll universal wire feeder
- Standard Configuration: Dual-channel terminal pressure monitoring, four-lens CCD visual inspection
