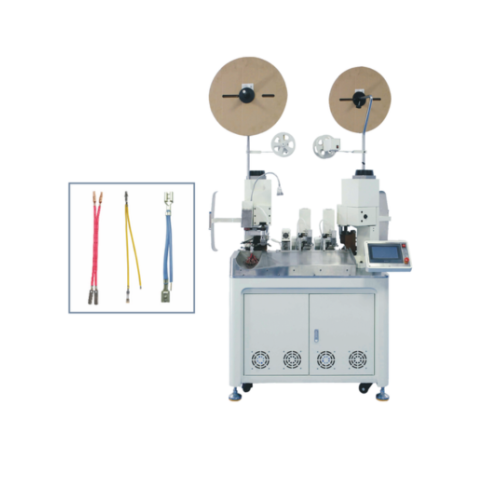

آلة تجعيد الأسلاك الأوتوماتيكية ذات الرأس المزدوج
أحصل على آخر سعر| الدفع نوع: | L/C,T/T |
| إنكوترم: | FOB,CIF,EXW |
| أدني كمية الطلب: | 1 Set/Sets |
| نقل: | Ocean,Land,Air |
| ميناء: | Shenzhen port,Guangzhou port,Hong kong port |
Model:
Option:
- Power Supply: AC 220V 50/60Hz (Single Phase)
- Function: Wire cutting, double-end stripping, double-end crimping, combined crimping
- Production Capacity: Double-wire parallel crimping: 3200 pcs/hour (within 100 mm length) Single-end crimping: 3500 pcs/hour (AWG18# – AWG26#) Double-end crimping: 3800 pcs/hour (AWG18# – AWG26#)
- Applicable Wire Range: AWG32# – AWG14#
- Cutting Length: 50 mm – 99999 mm
- Cutting Tolerance: ±0.2 mm + 0.2% × L (L = cutting length)
- Stripping Length: 0 – 8 mm
- Crimping Force: 2.0 T
- Air Pressure: 0.6 – 0.8 MPa (clean dry air required)
- Machine Dimensions: 750 × 1000 × 1900 mm
- Weight: Approx. 400 kg
