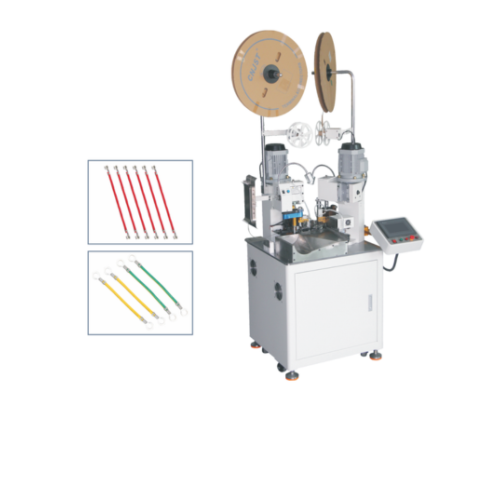

TYDC-01 العقص المدمج ذو النهاية المزدوجة
أحصل على آخر سعر| الدفع نوع: | L/C,T/T |
| إنكوترم: | FOB,CIF,EXW |
| أدني كمية الطلب: | 1 Set/Sets |
| نقل: | Ocean,Land,Air |
| ميناء: | Shenzhen port,Guangzhou port,Hong kong port |
Model:
Option:
- Power Supply: AC 220V 50/60Hz (Single Phase)
- Function: Wire cutting, single-end stripping, double-end stripping, double-end crimping
- Production Capacity: 3500 pcs/hour (within 300 mm wire length)
- Applicable Wire Range: AWG32# – AWG18#
- Cutting Length: 45 mm – 99999 mm
- Cutting Tolerance: ±0.2 mm + 0.2% × L (L = cutting length)
- Stripping Length: 0 – 10 mm
- Crimping Force: 2.0 T
- Twisting Function: None
- Air Pressure: 0.6 – 0.8 MPa (clean dry air required)
- Detection Devices: Wire presence detection, terminal presence detection, crimping quality detection, air pressure monitoring
- Machine Dimensions: 700 × 800 × 1500 mm
- Weight: Approx. 358 kg
