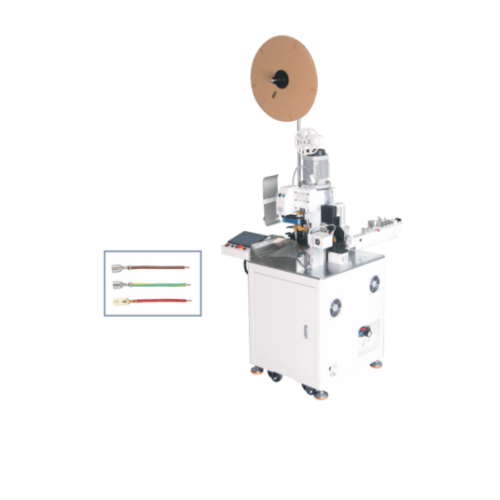

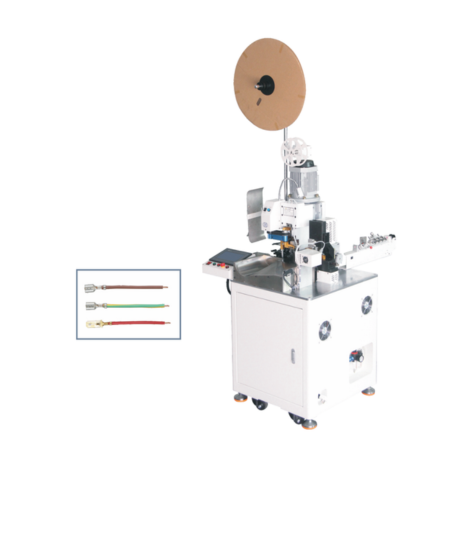

آلة العقص المدمجة عالية السرعة ذات الطرف الواحد
أحصل على آخر سعر| الدفع نوع: | L/C,T/T |
| إنكوترم: | FOB,CIF,EXW |
| أدني كمية الطلب: | 1 Set/Sets |
| نقل: | Ocean,Land,Air |
| ميناء: | Shenzhen port,Guangzhou port,Hong kong port |
Model:
Option:
- Power Supply: AC 220V 50/60Hz (Single Phase)
- Function: Wire cutting, single-end stripping, double-end stripping, single-end crimping, optional twisting
- Production Capacity: 4500 pcs/hour (within 100 mm length)
- Applicable Wire Range: AWG32# – AWG18#
- Cutting Length: 35 mm – 99999 mm
- Cutting Tolerance: ±0.2 mm + 0.2% × L (L = cutting length)
- Stripping Length: 0 – 10 mm
- Crimping Force: 2.0 T
- Twisting Length: 3 – 10 mm (optional)
- Air Pressure: 0.6 – 0.8 MPa (clean dry air required)
- Detection Devices: Wire presence detection, wire knot detection, wire breakage detection (optional)
- Machine Dimensions: 600 × 700 × 1500 mm
- Weight: Approx. 220 kg
