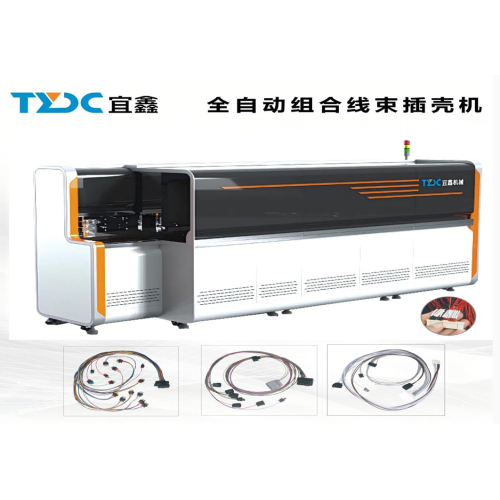

آلة إدخال غلاف الأسلاك المجمعة تلقائيًا
$45000-75000 /Set/Sets
| الدفع نوع: | L/C,T/T |
| إنكوترم: | FOB,CIF,EXW |
| أدني كمية الطلب: | 1 Set/Sets |
| نقل: | Ocean,Land,Air |
| ميناء: | Shenzhen port,Guangzhou port,Hong kong port |
Option:
- Power Supply: AC 380V
- Power Supply: AC 380V
- Compressed Air: 0.4–0.6 MPa
- Consumption Air: 30L/min
- Machine Weight: Approx. 1,300 kg
- Dimensions (Single Unit): 1340 × 1400 × 1640 mm
- Wire Range: 16 AWG – 26 AWG
- Wire Length: 200 – 9999 mm (customizable)
- Cutting Accuracy: ±0.5 mm + 0.2% of wire length
- Stripping Length: Max. 6.0 mm
- Crimping Force: 2.0 kN
- Maximum PIN Insertion: 20 pins per row, up to 3 rows
- Maximum PIN Colors: 15 colors (customizable)
- Shell Size: Max: 40 × 25 × 25 mm Min: 5 × 6 × 3 mm Pitch: 1.0–4.2 mm
- Operating Speed: Approx. 1,600 wires/hour
- Detection Functions: Wire presence/absence, wire knots, terminal presence/absence, abnormal stripping, terminal crimp force monitoring, insertion and pull-out detection
- Standard Components: 8-spindle universal wire feeder
- Standard Configuration: Japanese terminal crimp force monitoring system, 5MP CCD vision inspection lens
الظل:
