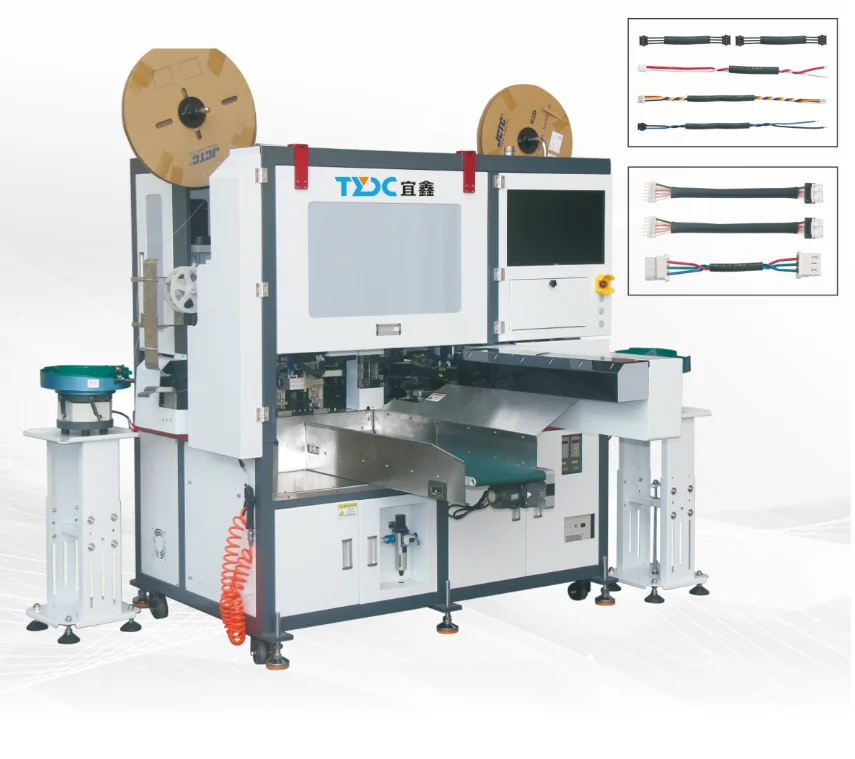

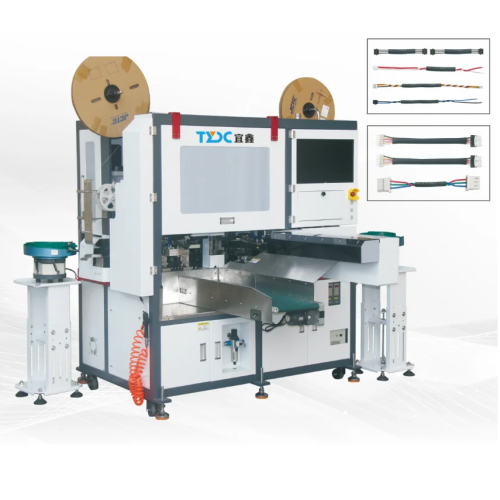

آلة تغليف العقص الطرفية ذات الرأس المزدوج
$35000-50000 /Set/Sets
| الدفع نوع: | L/C |
| إنكوترم: | FOB,CIF,EXW |
| أدني كمية الطلب: | 1 Set/Sets |
| نقل: | Ocean,Land,Air |
| ميناء: | Shenzhen port,Guangzhou port,Hong kong port |
Model:
Option:
- Power Supply: AC 220V
- Power Consumption: 4.8 kW
- Compressed Air: 0.6–0.7 MPA (clean & dry)
- Consumption Air: 30 L/min
- Machine Weight: ~900 kg
- Dimensions (L×W×H): 1900 × 1900 × 1800 mm
- Wire Range: AWG28# – AWG16#
- Cutting Accuracy: ±0.1 mm + (cut length × 0.1%)
- Stripping Length: 1–6 mm (half or full stripping)
- Applicable Housing Size: 1.0 – 3.96 mm pitch, single-row
- Production Rate: 4000–4500 pcs/hour (2+2 terminals, single-end housing insertion, wire ≤ 200 mm)
- Detection Functions: Wire presence, wire knotting, terminal presence, housing presence, air pressure alarm, motor abnormality, CCD inspection, defective product alarm
