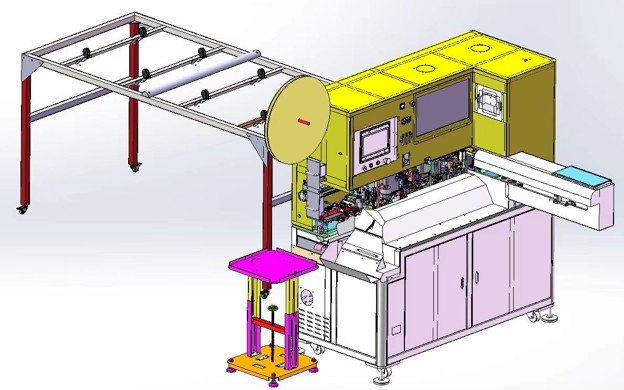

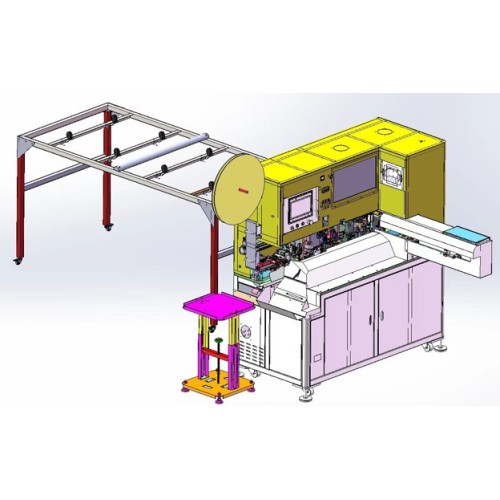

آلة إدخال غلاف التعليب الأوتوماتيكية
$50000-60000 /Set/Sets
| الدفع نوع: | L/C,T/T |
| إنكوترم: | FOB,CIF,EXW |
| أدني كمية الطلب: | 1 Set/Sets |
| نقل: | Ocean,Land,Air |
| ميناء: | Shenzhen Port,Guangzhou Port,Hong kong port |
Model:
Option:
- Power Supply: AC 220V
- Max. Power: 4.8 kW
- Air Pressure: 0.4-0.6 MPa
- Machine Weight: Approx. 750 kg
- Overall Dimensions: 2200L x 1650W x 1850H mm (excl. wire feeder and vibratory bowl)
- Feeding Method: Vibratory bowl feeds housings; wire feeder feeds wire; motor feeds solder wire and molten solder
- Function: End A: cut, strip, wire twisting, tinning. End B: strip, wire seal insertion, terminal crimping, CCD inspection, housing insertion
- Processing Range: AWG16-AWG26; up to 10 wire colors simultaneously
- Processing Length: 60-980 mm (exposed wire length after housing insertion)
- Cutting Accuracy: 0.5 mm + cut length x 0.2%
- Stripping Length: End A max. 10.0 mm; End B max. 6.0 mm
- Twisting Length: 3-10 mm
- Crimping Capacity: 2 T
- Max. Terminal Cavities: 20 per row, up to 3 rows
- Housing Size: Max. 40 x 21 x 18 mm (top-row cavity center height max. 14.5 mm); Min. 5 x 6 x 3 mm; pitch 1.0-4.2 mm
- Max. Operating Speed: 2.4 s/pc at retained wire length <200 mm (+0.1 s per additional 200 mm); 0.6 s automatic housing change and loading after each finished piece
- Detection Functions: Terminal appearance CCD, terminal presence, pull-back test after housing insertion, housing presence, settable reject rate
- Standard Configuration: Dedicated wire feeder, single-channel terminal pressure monitoring, single-lens CCD vision inspection
