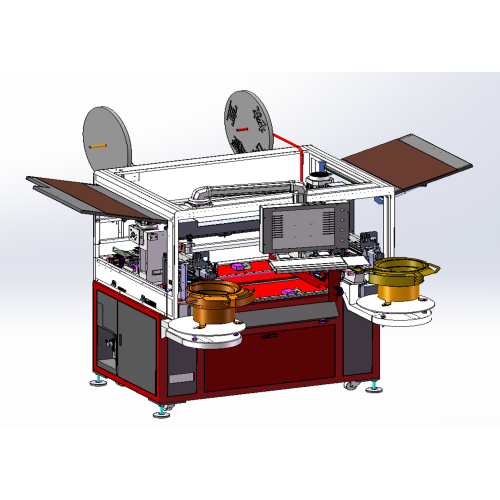

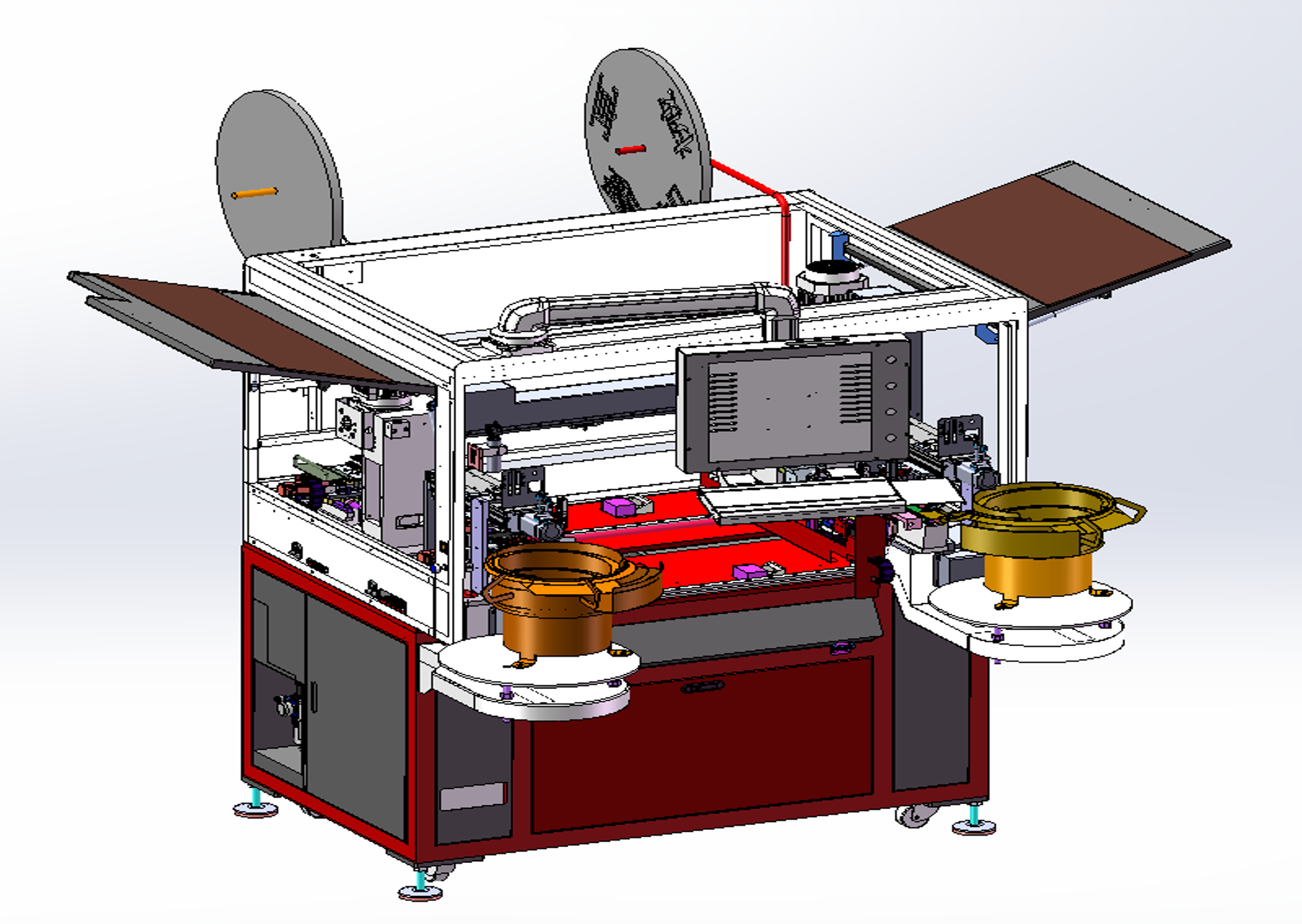

آلة إدخال الغلاف التلقائي ذات الرأس المزدوج
$30000-50000 /Set/Sets
| الدفع نوع: | L/C,T/T |
| إنكوترم: | FOB,CIF,EXW |
| أدني كمية الطلب: | 1 Set/Sets |
| نقل: | Ocean,Land,Air |
| ميناء: | Shenzhen port,Guangzhou port,Hong kong port |
Model:
Option:
- Power Supply: AC 220V
- Maximum Power: 3.2 kW
- Compressed Air: 0.4–0.6 MPa
- Consumption Air: 30L/min
- Machine Weight: Approx. 900 kg
- Equipment Size: 1500 × 1550 × 1960 mm
- Functions: A-End: Cutting, stripping, crimping, CCD inspection, terminal insertion B-End: Cutting, stripping, crimping, CCD inspection, terminal insertion
- Wire Processing Range: AWG16 – AWG30
- Wire Processing Length: 80 – 900 mm (customizable)
- Cutting Accuracy: 0.5 mm + 0.2% of cutting length
- Stripping Length: A-End max. 6.0 mm B-End max. 6.0 mm
- Crimping Force: 2 tons (customizable)
- Maximum PIN Insertion: 20 pins per row, up to 3 rows
- Maximum Color Count: 8 colors
- Connector Housing Size: Max: 40 × 25 × 20 mm Min: 5 × 6 × 3 mm Pitch: 1.0–4.2 mm
- Maximum Operating Speed: Approximately 1.5 seconds per unit
- Standard Components: 8-axis scroll universal wire feeder
- Standard Configuration: Dual-channel terminal crimp force monitoring Dual-lens CCD vision inspection system
