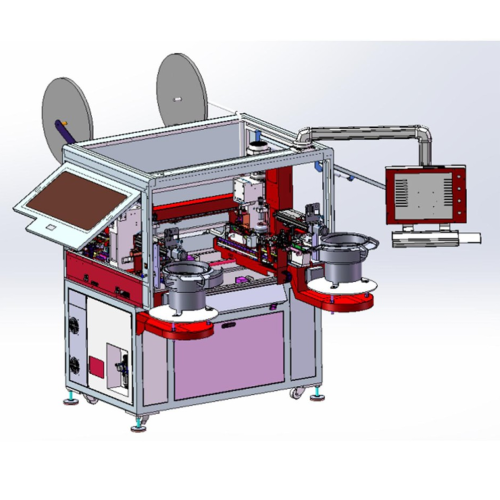

مجموعة أحزمة الأسلاك من واحد إلى اثنين أوتوماتيكية بالكامل
$30000-40000 /Set/Sets
| الدفع نوع: | L/C,T/T |
| إنكوترم: | FOB,CIF,EXW |
| أدني كمية الطلب: | 1 Set/Sets |
| نقل: | Ocean,Land,Air |
| ميناء: | Shenzhen port,Guangzhou port,Hong kong port |
Option:
- Power Supply: AC 220V
- High Power: 3.2 kW
- Compressed Air: 0.4–0.6 MPa
- Consumption Air: 30 L/min
- Machine Weight: Approx. 900 kg
- Machine Size (L×W×H): 1500 × 1550 × 1960 mm
- Functions: A-End: Cutting, stripping, crimping, CCD inspection, insertion B-End: Cutting, stripping, crimping, CCD inspection, insertion
- Wire Range: AWG16–AWG30
- Wire Length: 80–900 mm (supports short & long wire combinations)
- Cutting Accuracy: ±0.5 mm + 0.2% of cutting length
- Peel Length: Max 6.0 mm (A & B end)
- Crimping Capacity: 2T (customizable)
- Maximum Pin Insertion: 20 pins per row, up to 3 rows
- Maximum Color Count: 8
- Shell Size: Max: 40 × 25 × 20 mm Min: 5 × 6 × 3 mm Pitch: 1.0–4.2 mm
- Maximum Speed: 1.5 seconds per unit
- Standard Configuration: 8-axis scroll universal wire feeder, Dual-channel terminal pressure monitoring , Dual-lens CCD visual inspection
- Defect Rate: Overall failure rate during normal operation: ≤5%
