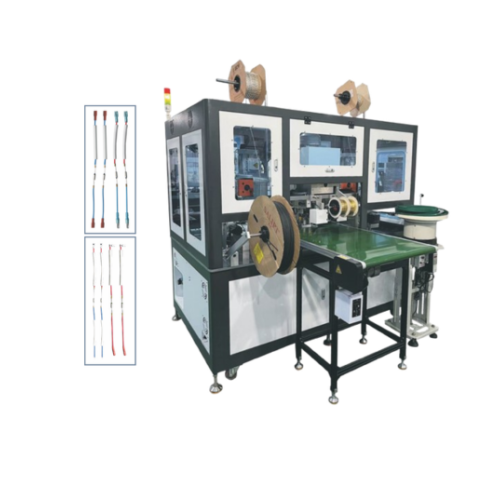

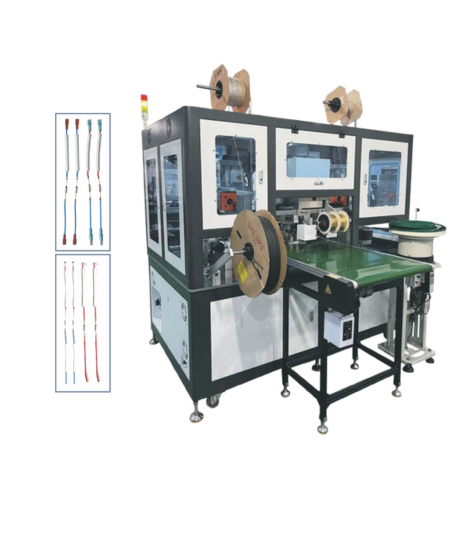

آلة التغطيه بعقب مشترك مزدوج الأسلاك للحماية من الحرارة
أحصل على آخر سعر| الدفع نوع: | L/C,T/T |
| إنكوترم: | FOB,CIF,EXW |
| أدني كمية الطلب: | 1 Set/Sets |
| نقل: | Ocean,Land,Air |
| ميناء: | Shenzhen port,Guangzhou port,Hong kong port |
Model:
Option:
- Power Supply: AC 220V, 50Hz (Single Phase)
- Function: Wire feeding, cutting, stripping, copper wire crimping, sleeving insertion, heat shrinking
- Applicable Wire Size: AWG20 – AWG14 (wire OD 1.8 – 3.0 mm)
- Cutting Length: 60 – 99,999 mm (length ≥800 mm requires conveyor belt)
- Casing Length: 50 – 90 mm (silicone or PVC)
- Wear Sheath Length: 15 – 187 mm / 250 mm (silicone or PVC)
- Crimping Capacity: 2.0 T
- Crimping Pipe Range: 1.8 – 30 mm
- Processing Capacity: 1400–1800 sets/hour
- Detection Functions: wire absence, crimping absence, insulation absence, copper wire absence, low air pressure
- Machine Dimensions: 1820 × 1200 × 1860 mm
- Main Components: Taiwan silver screw, AirTAC solenoid valve, closed-loop servo system, HIWIN slide, Japanese bearings
