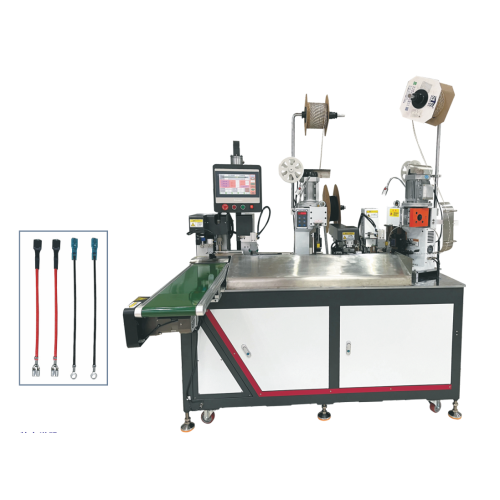

ماكينة تجعيد طرفية مزدوجة الرأس بالانكماش الحراري
أحصل على آخر سعر| الدفع نوع: | L/C,T/T |
| إنكوترم: | FOB,CIF,EXW |
| أدني كمية الطلب: | 1 Set/Sets |
| نقل: | Ocean,Land,Air |
| ميناء: | Shenzhen port,Guangzhou port,Hong kong port |
Model:
Option:
- Power Supply: AC 220V 50/60Hz (Single Phase)
- Function: Wire cutting, double-end stripping, double-end crimping, single-end heat-shrink tubing insertion & baking
- Processing Capacity: 2500 pcs/hour (depending on material)
- Applicable Wire Range: AWG24# – AWG16#
- Cutting Length: 60 mm – 99999 mm (minimum depends on stripping size)
- Cutting Precision: ±0.2 mm + 0.2% × L (L = cutting length)
- Stripping Length: 0 – 15 mm
- Heat-Shrink Tubing Length: 15 – 50 mm (adjustable)
- Air Pressure: 5 – 7 kg (clean dry air required)
- Machine Dimensions: L1700 × W850 × H1450 mm (excluding protrusions)
- Weight: Approx. 600 kg
- Main Components: Taiwan silver screw, Taiwan AirTAC solenoid valve, closed-loop servo motor, Taiwan HIWIN guide rail, Japan imported bearings
