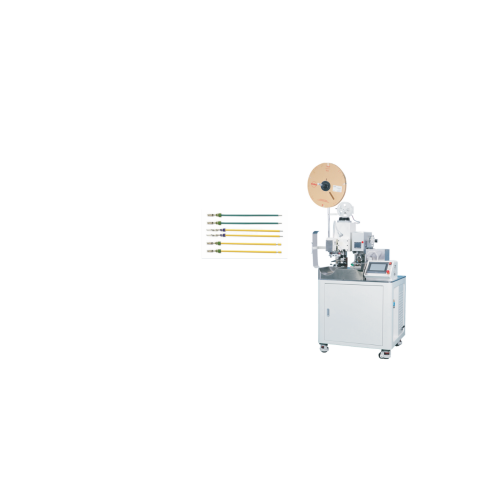

ماكينة تجعيد طرفية مقاومة للمياه برأس واحد
أحصل على آخر سعر| الدفع نوع: | L/C,T/T |
| إنكوترم: | FOB,CIF,EXW |
| أدني كمية الطلب: | 1 Set/Sets |
| نقل: | Ocean,Land,Air |
| ميناء: | Shenzhen port,Guangzhou port,Hong kong port |
Model:
Option:
- Power Supply: AC 220V, 50/60Hz
- Functions: Wire cutting, single/double-end stripping, single-end crimping, single waterproof plug insertion
- Production Capacity: 2500–2800 pcs/hour (100–300mm wire length)
- Applicable Wire Size: AWG28–AWG16
- Cutting Length: 50–9999 mm
- Cutting Accuracy: ±0.2mm + 0.2% × L
- Stripping Length: 0–10 mm
- Crimping Force: 2.0T
- Air Supply: 4–6 kgf (clean, dry compressed air)
- Detection Systems: Wire presence, terminal presence, plug insertion, connector detection, low air pressure
- Machine Dimensions: 700(W) × 800(L) × 1500(H) mm
- Weight: Approx. 348 kg
الظل:
