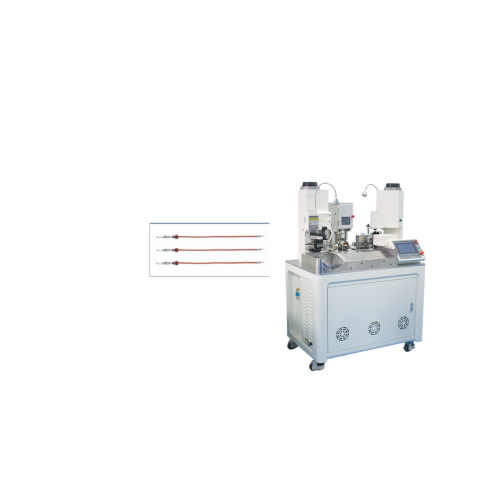

آلة العقص ذات الرأس الواحد المقاومة للماء ذات الرأس المزدوج
أحصل على آخر سعر| الدفع نوع: | L/C,T/T |
| إنكوترم: | FOB,CIF,EXW |
| أدني كمية الطلب: | 1 Set/Sets |
| نقل: | Ocean,Land,Air |
| ميناء: | Shenzhen Port,Guangzhou Port,Hong Kong Port |
Model:
Option:
- Power Input: AC220V 50/60Hz
- Function: Wire cutting, single-end stripping, dual-end stripping, dual-end terminal crimping, single-end waterproof plug insertion
- Capability: 2800 pcs/hour (wire length within 100mm)
- Available Wire Gauge: AWG28 – AWG16
- Cut Length: 50mm – 9999mm
- Cut Precision: ±0.2mm + 0.2% × L (L = cut length)
- Stripping Length: 0mm – 10mm
- Crimping Force: 2.0T terminal machine
- Air Supply: 0.6–0.8 MPa (clean dry air required)
- Detection Device: Wire presence detection, terminal crimp presence detection, jam detection, low air pressure detection
- Dimension: W800 × L1000 × H1500mm (dual-end crimping single waterproof plug)
- Weight: Approx. 440 kg
