$3000-4000 /Set/Sets
| الدفع نوع: | L/C,T/T |
| إنكوترم: | FOB,CIF,EXW |
| أدني كمية الطلب: | 1 Set/Sets |
| نقل: | Ocean,Land,Air |
| ميناء: | Shenzhen port,Guangzhou port,Hong kong port |
الظل:

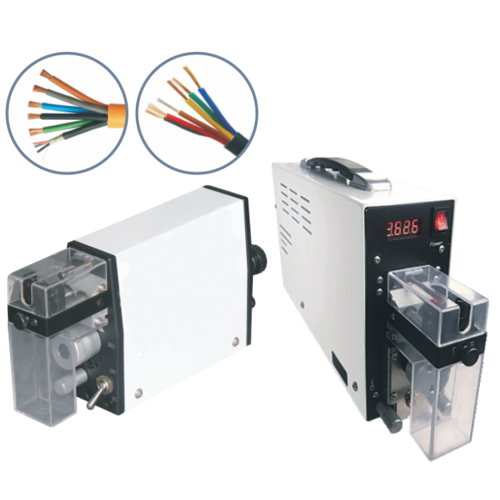

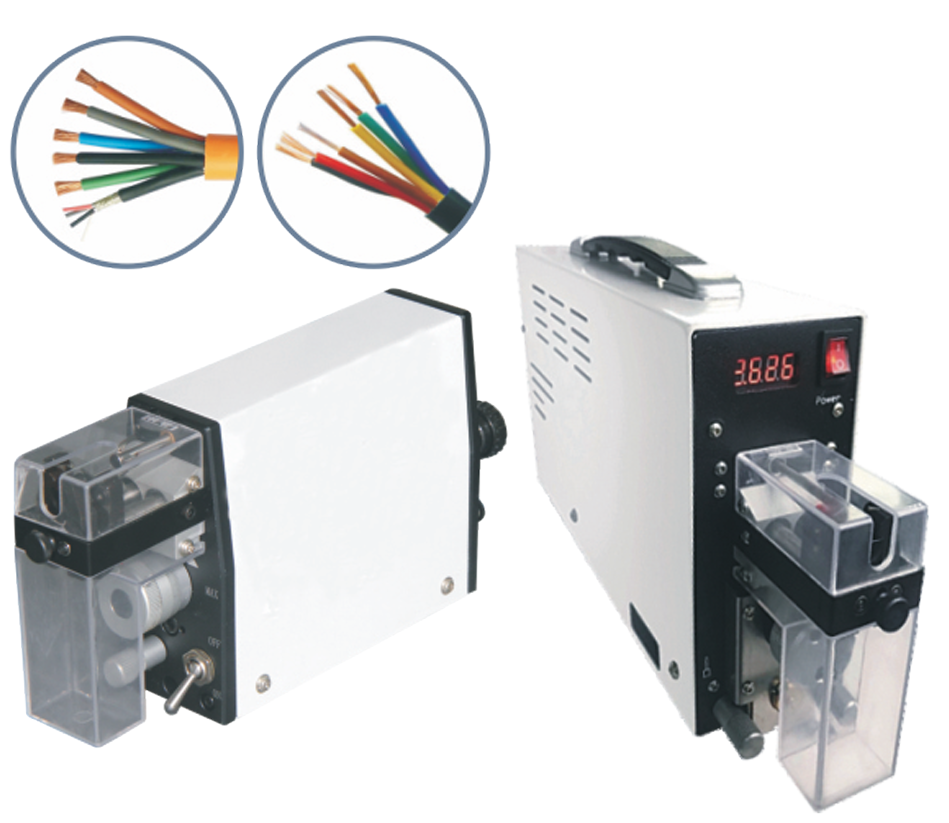

نموذج: Model: TYDC-GM001 / TYDC-GM002
علامة تجارية: TYDC
Origin: دونغقوان، الصين
شهادة: CE, ISO9001 certified
| بيع الوحدات | : | Set/Sets |
| نوع الحزمة | : | الآلة معبأة في علبة خشبية قياسية للتصدير مع بطانة واقية داخلية. تضمن العبوة المضادة للرطوبة والصدمات النقل الآمن للشحن لمسافات طويلة. |
| تحميل | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Specification | TYDC-GM001 (Pneumatic) | TYDC-GM002 (Electric) |
| Drive Type | Pneumatic | Electric |
| Cable Section | 0.03 – 2.08 mm² | 0.03 – 4.0 mm² |
| Max Cable Outer Diameter | 3.2 mm | 4.2 mm |
| Peeling Accuracy | Full peel: 0.5mm, Partial peel: 6mm | Full peel: 0.5mm, Partial peel: 6mm |
| Diameter Setting Accuracy | 0.01 mm | 0.01 mm |
| Max Peeling Length | 20 mm | 20 mm |
| Peeling Speed | Approx. 0.3 s | Approx. 0.5 s |
| Power/Air Requirement | 0.5–0.8 MPa (air pressure) | AC 110V / 220V |
| Dimensions (L×W×H) | 265 × 70 × 135 mm | 380 × 85 × 188 mm |
| Weight | 2.5 kg | Net: 4.5 kg, Gross: 5 kg |
